      Network drive mapping

      Steps to perform network mapping on a density meter

      Network drive mapping is available in user interface software under

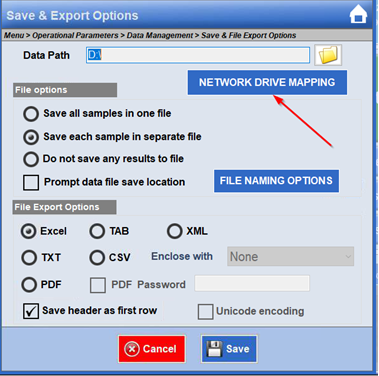

      - MENU (enter passcode 123) > OPERATIONAL PARAMETERS > DATA MANAGEMENT > SAVE & FILE EXPORT OPTIONS.

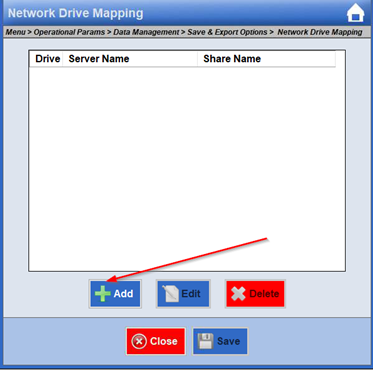

      Click NETWORK DRIVE MAPPING. Click ADD.

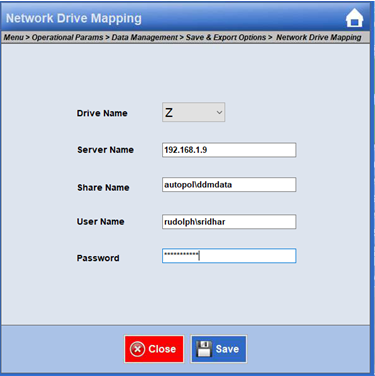

      - Provide server IP address without prefix \\.

      - Provide share name without prefix \.

      - Provide username in domain\username format.

      -Save

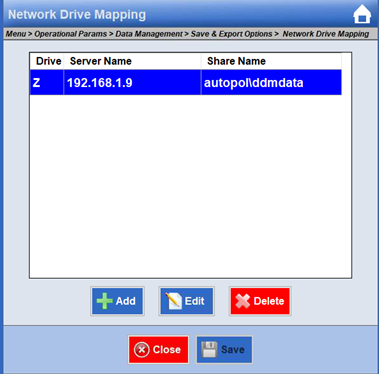

      Now the mapped drive will appear in data path browse button. Select and set.
